【Data adapter】：

Only one is needed on a temperature measuring site。

Data adapter：
    ☉Connect all field collectors in series through a data line，Basic data transmission distance1.2kilometre，Data adapter for data format conversion、relay、control、And provide power to all field devices through data lines。The data adapter can beＵＳＢDirect line to computer、It also supports communication with computers through radio stations，It also directly supports the adoption ofGPRS-DTUConnect to remote server，Make communication unlimited。
    ☉Battery access point on adapter,As backup power supply,Automatic switching，Call self charging),Make the system work by itself even if it is powered off or disconnected from the computer。
    ☉Each device only needs one data adapter。

【DTU】(Wireless Internet device)：

　　 Only used in the system【Cloud services】Use only when mode。【Cloud services】Mode time,Only one is needed on a temperature measuring site,Coordination[Data adapter]Use,

DTUIt's a wireless Internet device.，Divided intoGPRSformat（Using mobile or Unicom'sSIMcard）、CDMAformat（Using telco's mobile card）,Available now and in the future3Gand4G、5GModeDTU。

for example：GPRS-DTUNamelyGPRSModular，NamelyGPRSWireless Internet device,Used to communicate field devices with remote servers,As long as there isGSMMobile signal available everywhere；

Make data transmission unlimited;

Only one for each set of equipmentDTUModular。

Our company provides high-performance remote server（Cloud services）Free for regular customers。

Under this mode，Users do not need to be equipped with on-site office computers，No software installed。

Use a mobile phone or computer with internet access to view data in real time

【data collector】：

More than one set is needed on a temperature measuring site，Related to plane measuring point； Each data collector has8Sensor channels。

【Temperature sensor】：

Respectively inserted into the corresponding sensor channel of the corresponding collector for use。

Temperature sensor and lead。Before binding or casting，Fix the sensor to the set position and depth in the concrete to be poured。Sensor easy to use metal shell protection，And long enough、Strong enough lead。Lead wire has high temperature resistance、Rigid pulling and breaking compensation function。 The sensor has been rectified internally，It is not necessary to distinguish the positive and negative poles when plugging into the collector.。

First line communication systemCloud service modeTopological graph of time：

First line communication system(Cloud service mode)yes:
    ☉as long as1platformData adapter+1platformDTUAnd multiple data collectors and sensors，Connect all data adapters and data collectors in series with one data bus，
    ☉Data adapter throughDTUWireless internet access，Transfer data to ECS；
    ☉Each data collector has８Sensor channels（Connect at the same time１～８Sensor）；
    ☉No matter where the managers are，Can use the computer or mobile phone on the Internet to view the real-time temperature measurement data、Report form、Graphical；

First line communication systemPCPatternTime topological graph：

First line communication system(Cloud service mode)yes:
    ☉as long as1Data adapters and multiple data collectors and multiple sensors，Connect all data adapters and data collectors in series with one data bus；
    ☉Data adapter throughUSBData cable to PC（No drivers），We need to install our monitoring software on the computer；
    ☉Each data collector has８Sensor channels；
    ☉The management personnel can view the data of each site in real time on the computer of the office.、Report form、Graphical；
　

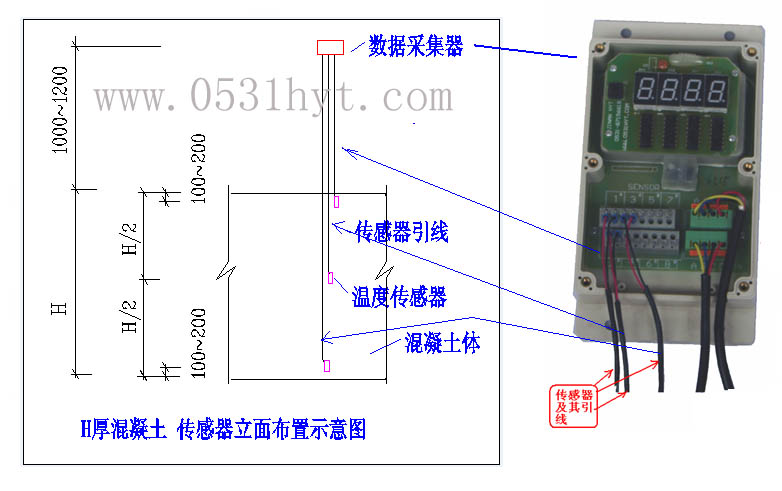

Arrangement of field sensors in the vertical direction：

【Cloud services】Mode time，System connection diagram：

Advantages of cloud service mode：

No computer on site，DTUInternet access has nothing to do with distance，Do not install software，Data can be viewed anytime and anywhere with a computer or mobile phone that can access the Internet,Support for web pages and clientsAPP，Data can be pushed。

ECS is provided by our manufacturer to users for free，Already in China６Server clusters provide uninterrupted service。

Temperature sensor and lead：

When binding the reinforcement or before pouring，Fixed to set position and depth in concrete to be placed。The sensor is protected by a metal housing，And long enough、Strong enough lead。Lead wire has high temperature resistance、Temperature compensation function。Sensor internal rectified，Do not distinguish positive and negative polarity when plugging into the collector。

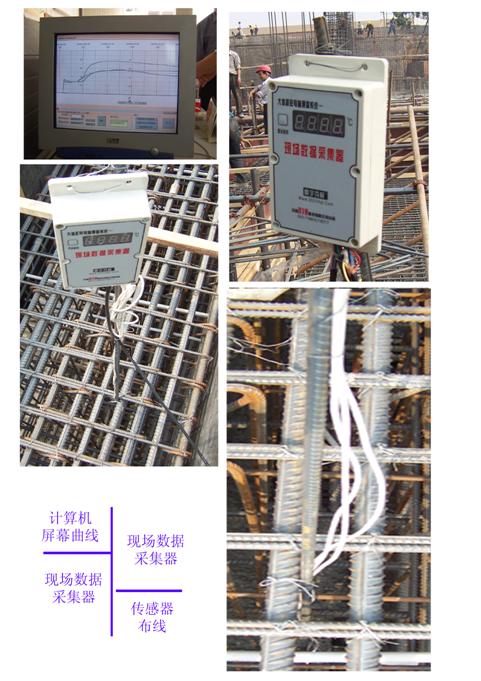

Working photo of Field Collector：

Here are some application screenshots，Please refer to[www.0531hyt.netdatawebsite]upperSee：
（screenshot：dataDisplayed on the website[Last data]）
（screenshot：Displayed on the website[Temperature curve of a station in a certain period of time]）

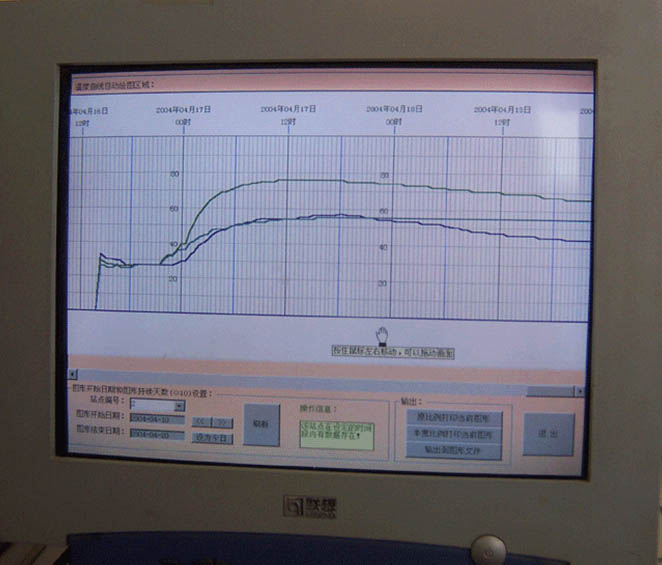

Use【ＰＣ】Mode time，Screenshot of screen curve：：
